| Features | Applications | Specification | |
|
• 1Mp RGB Sensor • 120dB HDR宽动态范围 • 低照度能力 ≦ 0.1lux • 小型化、低功耗 • Pigtail和direct两种可选 |
• 360 surround view system • Rear view camera |
Image Sensor | 1M CMOS |
| HFOV | H:190°~210° | ||
| Output Size | 1280(H) x 960(V) | ||
| Data Format | YUV422 | ||
| Frame Rate | 25 / 30 fps | ||
| Dynamic Range | 120 dB | ||
| Supply Voltage | 7 to 16V | ||
| Operating Temp. | -40 to 85°C | ||
| Storage Temp. | -40 to 95°C | ||
| IP Level | IP69K | ||
| Connector | FAKRA | ||

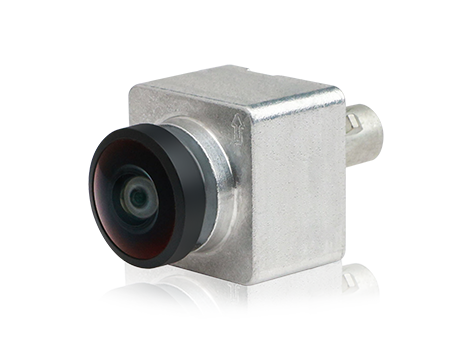

| Features | Applications | Specification | |
|
• 3Mp RGB Sensor • 金属外壳 • 宽动态范围（with LFM） • 小型化、低功耗 • Pigtail和direct两种可选 |
• Autonomous driving • E-Mirror • Camera monitoring system |
Image Sensor | 3M CMOS |
| HFOV | 60°~200° | ||
| Camera Output Size | 1920 x 1280/1920 x 1536 | ||
| Frame Rate | 30fps/60fps | ||
| Data Format | RAW/YUV422 | ||
| Dynamic Range | 140dB | ||
| Supply Voltage | 6 to 18V | ||
| Operating Temp. | -40 to 85°C | ||
| Storage Temp. | -40 to 95°C | ||
| IP Level | IP69K | ||
| Connector | FAKRA | ||
| Features | Applications | Specification | |
|
• 8Mp RGB Sensor • 金属外壳 • 140dB宽动态范围（with LFM） • 单PCBA设计 • 小型化设计 |
• Front camera • Rear camera • Autonomous driving |
Image Sensor | 8M COMS |
| HFOV | 60°~130° | ||
| Camera Output Size | 3840 x 2160 | ||
| Frame Rate | 45fps | ||
| Data Format | RAW | ||
| Dynamic Range | 140dB | ||
| Supply Voltage | 6 to 18V | ||
| Operating Temp. | -40 to 85°C | ||
| Storage Temp. | -40 to 95°C | ||
| IP Level | IP69K | ||
| Connector | FAKRA | ||
| Features | Applications | Specification | |
|
• 2Mp IR Sensor • COMS 集成ISP • 单PCBA设计 • 尺寸小型化设计 • 低功耗 |
• Driver monitor system |
Image Sensor | 2M IR CMOS |
| HFOV | 40~70° | ||
| Camera Output Size | 1920 x 1200 | ||
| Frame Rate | 60fps | ||
| Data Format | YUV422 | ||
| Dynamic Range | 61.5dB | ||
| Supply Voltage | 6 to 18V | ||
| Operating Temp. | -40 to 85°C | ||
| Storage Temp. | -40 to 95°C | ||
| IP Level | IP52 | ||
| Connector | FAKRA | ||
| Features | Applications | Specification | |
|
• 2Mp RGB/IR Sensor • 日/夜间模式切换 • 自拍功能 • IR LED 940/855nm • LENS小型化 (8mm) |
• In-cabin monitoring | Image Sensor | 2M RGB-IR COMS |
| HFOV | 142° | ||
| Camera Output Size | 1920 x 1280 | ||
| Frame Rate | 30fps | ||
| Data Format | YUV422 | ||
| Dynamic Range | RGB 120dB | ||
| Supply Voltage | 6 to 18V | ||
| Operating Temp. | -40 to 85°C | ||
| Storage Temp. | -40 to 95°C | ||
| IP Level | IP52 | ||
| Connector | FAKRA | ||
| Features | Applications | Specification | |
|
• 5Mp RGB/IR Camera • 舱内检测 • 日/夜间模式切换 • IR LED 940/850nm • LENS小型化（8mm） • 同时满足DMS和OMS应用 |
• In-cabin monitoring • Driver monitoring systems |
Image Sensor | 5M RGB-IR COMS |
| HFOV | 128° | ||
| Camera Output Size | 2592 x 1944 | ||
| Frame Rate | 60fps | ||
| Data Format | YUV (RGB&MONO) | ||
| Dynamic Range | 71dB | ||
| Supply Voltage | 6 to 18V | ||
| Operating Temp. | -40 to 85°C | ||
| Storage Temp. | -40 to 95°C | ||
| IP Level | IP52 | ||
| Connector | FAKRA | ||
| Features | Applications | Specification | |
|
• 1Mp高清 • 支持3D view • 集成动态辅助线 • 自动标定 • 亮度和色彩一致性 • 无缝拼接 |
• 360° surround view system |
Input Voltage | 9~16V |
| Operating Temp. | -40~85℃ | ||
| Storage Temp. | -40~95℃ | ||
| Operating Current | 770mA (@12V with CAM) | ||
| Dark Current | 41mA max | ||
| Size | 152.8*138.3*31.5mm | ||
| Weight | ≃600g | ||
| Cold Start Time | ≤6s | ||
| Switching Time | ≤200ms | ||
| I/P(LVDS) | 1.0Mp@30Hz(1280x800) | ||
| O/P (LVDS) | 1600x640@30Hz | ||
